Block 1 — Foundation (2 days)

Goal: Walkable blockout hideout and city map with interactable station volumes, the core data model compiled and instantiable, and all subsystem stubs in place. No gameplay — just the shell everything plugs into.

Depends on: Nothing — this is the foundation.

Build order: bottom-up. Data model (vocabulary) → input assets → level geometry → BP actor classes → Player Controller glue → final instance placement. Each section only references things defined above it.

Deliverables

Core Data Model (C++)

All enums, structs, and subsystem stubs compiled and instantiable. Every downstream section references this vocabulary, so it lands first.

Enums:

Structs:

DataAsset classes (C++ headers, no content authored yet):

Subsystem stubs (C++ — UGameInstanceSubsystem subclasses, empty implementations except where noted):

UCityMapSubsystem::SetOverheadCamera is the one method that ships functional in Block 1 — it drives the Raid Board → city camera swap that satisfies the Done When list. Spec’d in City Map Camera Swap below.

Input Assets

Enhanced Input assets created up front so the Player Controller and pawn can reference them later.

Enhanced Input plugin

Verify enabled: Edit → Plugins → search “Enhanced Input” → Enabled. Set as default input class:

• Project Settings → Input → Default Classes
  • Default Player Input Class: EnhancedPlayerInput
  • Default Input Component Class: EnhancedInputComponent

Restart editor after change.

Asset layout

Create folder Content/TrashNTreasure/Input/. Right-click in Content Browser → Input →:

• Input Action ×7 → IA_Move, IA_Look, IA_Interact, IA_Pan, IA_Zoom, IA_Click, IA_Escape
• Input Mapping Context ×2 → IMC_Hideout, IMC_CityMap

Set Value Type per IA on creation:

IMC bindings

Open each IMC → Mappings → + → pick the IA → assign key + modifiers.

WASD pattern (used by IA_Move and IA_Pan): A keypress is injected on the X axis of the resulting Vector2D by default. D already lands on +X, A needs Negate. W/S need to land on Y instead — Swizzle Input Axis Values: YXZ rotates X→Y, then S gets Negate. Add 4 separate key entries on the IA, one per key:

IMC_Hideout:

IMC_CityMap:

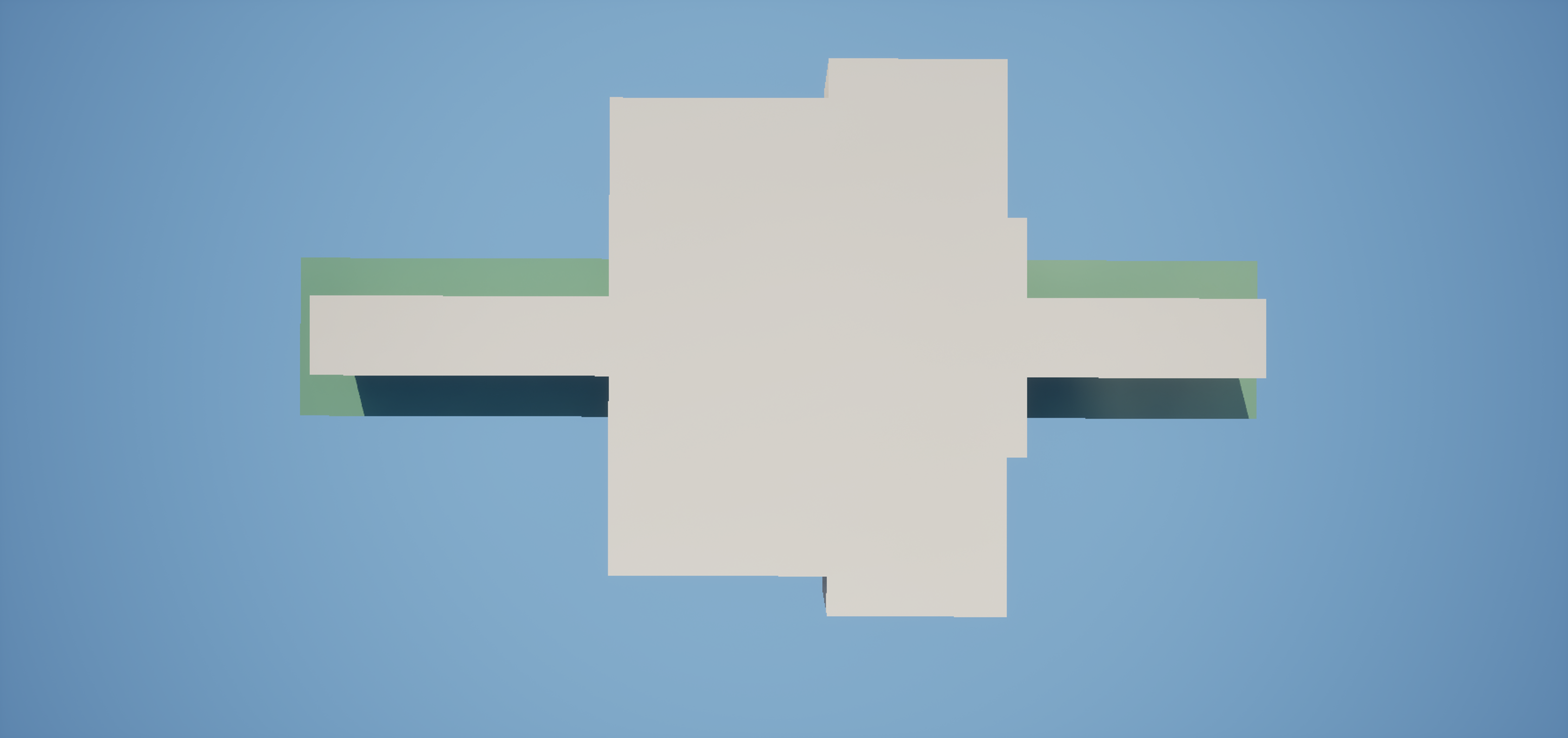

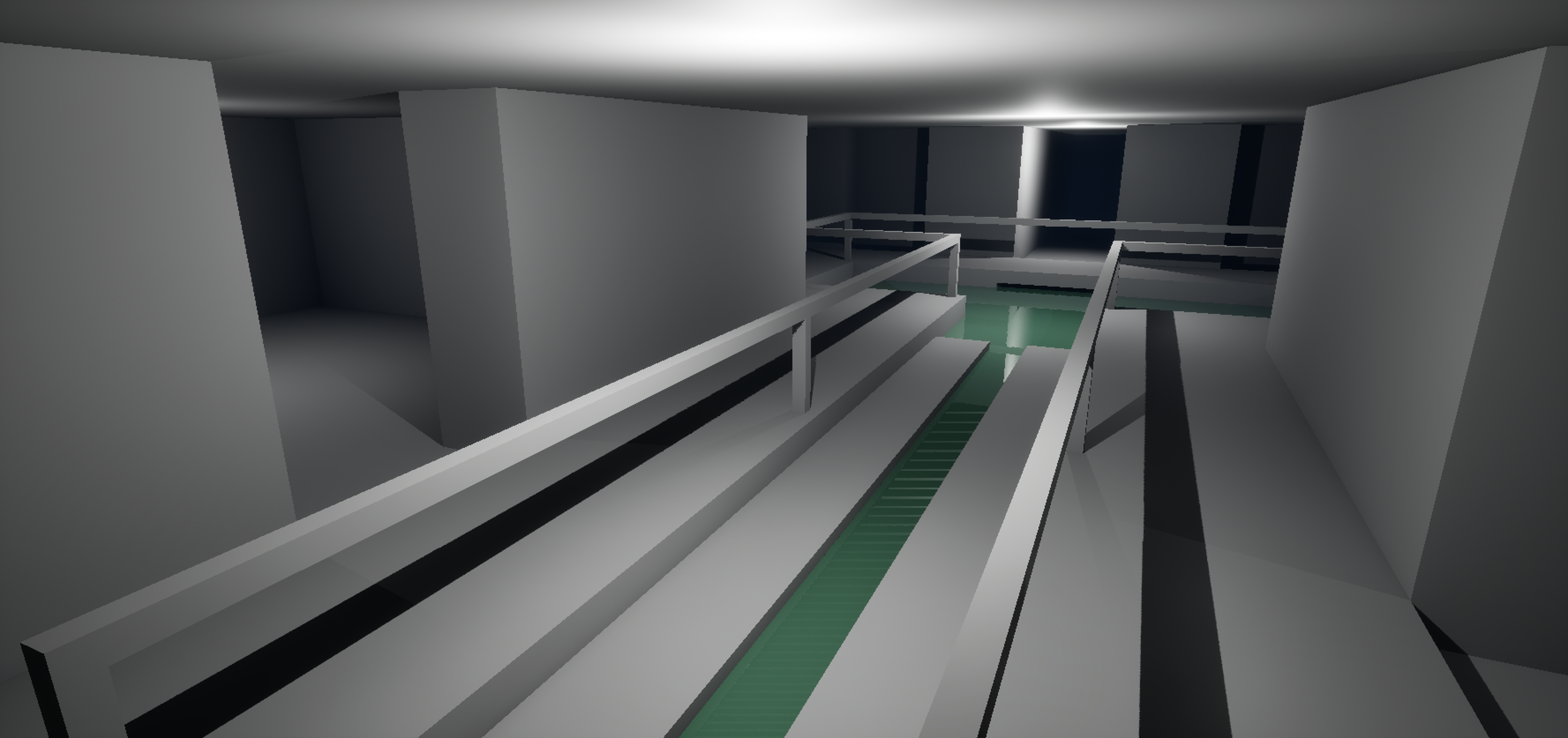

Home Base Blockout (L_Hideout)

UE5 Modeling Tools geometry defining the tunnel layout: main corridor, alcoves for stations, dead ends for boundaries. Sized for 7 station spots plus walking paths. Use Cube Grid tool → PolyEdit to extrude alcoves. Flat unlit materials with distinct colors per zone. Scale for real human height so that jerry rigged props scale appropriately. Average tunnels ~200 cm tall, 100 cm wide.

Reference board: Home Base Reference Images

CURRENT PASS

City Map Sublevel (L_City)

Sublevel setup

1. Window → Levels panel in L_Hideout (persistent level)
2. Levels → Add Existing Level → select L_City.umap (or create new if first time)
3. Right-click L_City in Levels panel → Change Streaming Method → Always Loaded

Always Loaded because raccoon AI pawns navigate L_City during active raids and NavMesh must persist regardless of whether player is viewing the city map. At blockout scale memory cost is negligible — revisit if L_City grows to production art with significant asset weight.

Ground plane & road grid (spline + PCG)

• Flat ground plane sized for small city block grid (~5000×5000 cm). No terrain, no landscape — flat geometry only at blockout
• Ground plane carries UNavModifierComponent with AreaClass = NavArea_Null — makes raw ground unwalkable by default
• Road layout authored as splines: BP_RoadSpline (Blueprint, parent AActor, contains USplineComponent) per road segment. Drop control points in editor to shape the road grid between building plots
• PCG graph asset PCG_RoadNetwork attached to each spline:
  • Samples spline at fixed interval (~50 cm)
  • Spawns road mesh segments (flat boxes, road-colored material) along samples
  • Spawns a child ANavModifierVolume per segment with AreaClass = NavArea_Default — paints walkable strip over the null ground
  • Road width ~120 cm (2× agent radius + margin)
• Buildings sit on plots adjacent to splines. Raccoons can only path along road strips → forced to use roads between hideout exit and buildings
• Edit splines → PCG regenerates road geometry + nav modifiers automatically. No manual mesh placement

NavMesh

• Place ANavMeshBoundsVolume covering entire ground plane + small margin (100–200 cm)
• Project Settings → Navigation Mesh → Agent Radius: 30 cm, Agent Height: 60 cm (raccoon scale)
• Runtime Generation = Dynamic Modifiers Only — NavMesh respects NavModifier volumes spawned by PCG without full rebuild
• Area cost: leave NavArea_Default cheap, NavArea_Null unwalkable. Raccoon pathfinding ignores non-road ground entirely
• After spline edit + PCG regen: Build → Build Paths (or wait for dynamic rebuild). Press P to visualize — green should only cover road strips, not building plots or empty ground
• NavMesh persists at runtime because L_City is Always Loaded — no rebuild needed on sublevel stream-in

Verify: drop test BP_RaccoonAIPawn off-road → MoveTo target across map should route along roads, not straight line across plots. If pawn cuts corners, road NavModifier strips too narrow or overlapping with null area — widen road width or check modifier priority.

First-Person Movement

BP_PlayerPawn (Blueprint, parent ACharacter) with UCharacterMovementComponent in walking-only mode. Disable jumping and crouching. UCapsuleComponent at 30 cm half-height, UCameraComponent at raccoon eye height. CMC handles gravity and floor pinning — avoids floating on uneven geometry. No paw hands or character model yet — camera only.

Expose two functions called by the Player Controller’s input routing: HandleMove(FVector2D) applies movement input via CMC; HandleLook(FVector2D) rotates control rotation (yaw) + camera pitch. Keeping movement math on the pawn lets the PC stay input-routing only.

Station Volumes

BP_StationBase (Blueprint, parent AActor). Same class — per-instance behavior comes from the assigned UStationDataAsset. Blueprint-only: logic is component setup + a Switch on enum + subsystem passthroughs, nothing that warrants a C++ base.

Components (BP):

Variables (BP):

Functions (BP):

• OnPlayerInteract() — Switch on StationType:
  • RaidBoard → UCityMapSubsystem::SetOverheadCamera(true) (handles SetViewTargetWithBlend to BP_CityCamera + PC input swap to IMC_CityMap)
  • all others → CreateWidget(StationData->UIWidgetClass) → AddToViewport → SetInputModeGameAndUI + SetShowMouseCursor(true)
  • For MVP blockout the non-RaidBoard branch just Print String with the station name — real widgets land Block 3+
• GetEffectiveStat(EStatType) : int32 — passthrough to UStationSubsystem::GetEffectiveStatFor(StationType, StatType). Pure function

No subclasses. UStationDataAsset specifies station type, relevant stats, base storage cap, upgrade cost curve, and TSubclassOf<UUserWidget> UIWidgetClass to spawn on interact. Raid Board leaves UIWidgetClass null — uses city map flow instead.

Promote to ATNTStationBase C++ base only if station logic stops fitting a single Switch (e.g. per-type tick behavior, multi-step interaction state machine) or if another actor family needs to share an IInteractable interface.

City Map Actors (stubs)

All Blueprint-only — no C++ base needed. Logic is trivial component setup + DA references.

Player Controller

BP_PlayerController (Blueprint, parent APlayerController). Glue layer: applies Input Assets above, routes IA events to the pawn, and wires station overlap → interaction.

Adding IMCs to the local player

Enhanced Input contexts apply via UEnhancedInputLocalPlayerSubsystem. Do this in BP_PlayerController event graph:

Event BeginPlay
  → Get Local Player (from controller)
  → Get Enhanced Input Local Player Subsystem
  → Add Mapping Context
       MappingContext = IMC_Hideout
       Priority = 0

Cache the subsystem reference on a variable (EnhancedInputSub) — context swap functions reuse it.

Create two helper functions on BP_PlayerController:

Function: SwitchToHideoutInput
  EnhancedInputSub → Remove Mapping Context (IMC_CityMap)
  EnhancedInputSub → Add Mapping Context (IMC_Hideout, Priority 0)
  Set Input Mode Game Only
  Set Show Mouse Cursor = false

Function: SwitchToCityMapInput
  EnhancedInputSub → Remove Mapping Context (IMC_Hideout)
  EnhancedInputSub → Add Mapping Context (IMC_CityMap, Priority 0)
  Set Input Mode Game and UI   // Game and UI (not Game Only) so cursor-over events route to BP_Building (Block 03 hover)
  Set Show Mouse Cursor = true   // city map needs cursor for click + drag

These helpers are invoked by the PC’s own OnOverheadCameraChanged delegate handler (bound to UCityMapSubsystem in BeginPlay — see City Map Camera Swap). Subsystem owns camera + pawn snapshot; PC owns IMC swap.

Binding IA events

Bind on BP_PlayerController event graph (PC owns the input component because EnhancedPlayerInput lives on the controller). Pawn-affecting actions forward to the possessed pawn’s HandleMove / HandleLook:

EnhancedInputAction IA_Move (Triggered)
  → Get Controlled Pawn → Cast to BP_PlayerPawn
  → Call HandleMove(ActionValue.Get<FVector2D>())

EnhancedInputAction IA_Look (Triggered)
  → Get Controlled Pawn → Cast to BP_PlayerPawn
  → Call HandleLook(ActionValue.Get<FVector2D>())

EnhancedInputAction IA_Interact (Started)
  → If CurrentOverlappedStation valid → CurrentOverlappedStation->OnPlayerInteract()

City-map actions stay on the controller (no pawn involved when viewing city camera):

EnhancedInputAction IA_Pan (Triggered)    → adjust BP_CityCamera transform
EnhancedInputAction IA_Zoom (Triggered)   → adjust BP_CityCamera arm length / Z
EnhancedInputAction IA_Click (Started)    → line trace from cursor → BP_Building hit → select
EnhancedInputAction IA_Escape (Started)   → UCityMapSubsystem::SetOverheadCamera(false)

Interaction system

Overlap-based, not line trace. BP_StationBase’s InteractionVolume is already configured (OverlapOnlyPawn) from its spec above.

BP_PlayerController holds CurrentOverlappedStation : BP_StationBase (Object Reference, nullable). Wire the station’s overlap delegates to push/pop this reference:

On BP_StationBase:
  Event OnComponentBeginOverlap (InteractionVolume)
    → Cast Other Actor to BP_PlayerPawn → valid?
    → Get Player Controller → Cast to BP_PlayerController
    → Call PC->SetOverlappedStation(Self)

  Event OnComponentEndOverlap (InteractionVolume)
    → same cast chain
    → Call PC->ClearOverlappedStation(Self)   // only clears if Self == current

PC’s SetOverlappedStation shows the HUD interact prompt; ClearOverlappedStation hides it. Only one station tracked at a time — last BeginOverlap wins, EndOverlap only clears if leaving the cached station (prevents flicker when overlap volumes touch).

City Map Camera Swap (UCityMapSubsystem::SetOverheadCamera)

Implement in Block 1, not deferred. This is the one C++ method that has to be working for the Raid Board → city camera swap (a Block 1 Done When item). Every other subsystem method stays stubbed; Block 3+ extends UCityMapSubsystem with building lookup, hover/select, and active-raid display — see Block 03.

Why on the subsystem (not on PC or station): the same swap is invoked from two unrelated callers — BP_StationBase::OnPlayerInteract (Raid Board branch) and BP_PlayerController IA_Escape binding. Putting the swap on the subsystem gives both callers one entry point, keeps CachedPlayerPawn in one place, and survives PC respawn (the GameInstance subsystem outlives the PC).

UCityMapSubsystem.h (Block 1 surface):

DECLARE_DYNAMIC_MULTICAST_DELEGATE_OneParam(FOnOverheadCameraChanged, bool, bEnabled);

UCLASS()
class UCityMapSubsystem : public UGameInstanceSubsystem {
    GENERATED_BODY()
public:
    UFUNCTION(BlueprintCallable, Category="City Map")
    void SetOverheadCamera(bool bEnable);

    UPROPERTY(BlueprintAssignable, Category="City Map")
    FOnOverheadCameraChanged OnOverheadCameraChanged;

private:
    UPROPERTY() TObjectPtr<ACameraActor> CityCamera = nullptr;       // lazy-resolved
    UPROPERTY() TObjectPtr<APawn>        CachedPlayerPawn = nullptr; // snapshot at swap-in
    // BuildingUnlockStates declared in stub table above
};

SetOverheadCamera implementation:

APlayerController* PC = GetWorld()->GetFirstPlayerController()
if (!PC) return

if (bEnable):
    if (!CityCamera):
        // L_City has exactly one BP_CityCamera — first-match is fine for blockout
        TArray<AActor*> Found
        UGameplayStatics::GetAllActorsOfClass(this, ACameraActor::StaticClass(), Found)
        if (Found.Num() == 0) return                 // L_City not loaded yet — bail
        CityCamera = Cast<ACameraActor>(Found[0])
    CachedPlayerPawn = PC->GetPawn()
    PC->SetViewTargetWithBlend(CityCamera, 0.5f)
else:
    PC->SetViewTargetWithBlend(CachedPlayerPawn, 0.5f)

OnOverheadCameraChanged.Broadcast(bEnable)            // PC handles input swap

The subsystem owns the camera target + cached pawn. It does NOT touch input contexts directly — that’s the PC’s job, kept in BP because IMC assets are easier to reference there. The subsystem fires the delegate; the PC listens and calls its own SwitchToCityMapInput / SwitchToHideoutInput helpers (defined in Player Controller above).

BP_PlayerController BeginPlay — bind the delegate:

Get Game Instance → Get Subsystem (UCityMapSubsystem)
  → cache as CityMapSub
  → Bind Event to OnOverheadCameraChanged → custom event RouteOverheadInput

Custom Event RouteOverheadInput (bool bEnabled)
  Branch on bEnabled
    True  → SwitchToCityMapInput
    False → SwitchToHideoutInput

Why lazy-resolve CityCamera: subsystem Initialize() runs at GameInstance startup, before any level actor exists. By the first Raid Board interact, L_City is already Always Loaded so the lookup succeeds.

Why cache the pawn: SetViewTargetWithBlend(CachedPlayerPawn, …) on disable returns to the exact pawn the player left. Without the snapshot, restoring would have to assume PC->GetPawn() is still the player’s pawn — fragile if anything else briefly possesses something during the city view.

Called from:

• BP_StationBase::OnPlayerInteract — RaidBoard branch → SetOverheadCamera(true)
• BP_PlayerController IA_Escape (Started) → SetOverheadCamera(false)

Game Mode

BP_GameMode (Blueprint, parent AGameModeBase). Sets DefaultPawnClass = BP_PlayerPawn, PlayerControllerClass = BP_PlayerController. Assign BP_GameMode as the GameMode Override on L_Hideout. No gameplay init yet (that’s Block 2+).

Actor Placement

Final step — drop instances of the BP classes above into the already-built levels.

Hideout (L_Hideout)

7 instances of BP_StationBase in the tunnel alcoves — one per EStationType value (RaidBoard, TrainingCorner, LootSortingStation, OnlineSales, Pantry, GearBench, UpgradeDesk). Each instance’s StationData variable set to a distinct UStationDataAsset. Station DA content is authored Block 3; for blockout either stub a minimal DA per type or leave StationData null and have OnPlayerInteract fall back to Print String with the placed instance label.

Also place BP_PlayerPawn spawn (PlayerStart at tunnel entrance).

City Map (L_City)

ANavMeshBoundsVolume already placed per the NavMesh subsection.

Content Browser Layout (initial)

Content/TrashNTreasure/
  Data/
    RaccoonTypes/     (empty — populated Block 2)
    Stations/         (empty — populated Block 3+)
    RaidTargets/      (empty — populated Block 3)
    Encounters/       (empty — populated Block 3)
    Buildings/        (empty — populated Block 3)
    Tables/           (empty — populated Block 8–9)
  Blueprints/
    Stations/         BP_StationBase (parent: AActor)
    Player/           BP_PlayerPawn, BP_PlayerController, BP_GameMode
    CityMap/          BP_Building, BP_RaccoonAIPawn, BP_CityCamera, BP_HideoutExit, BP_RoadSpline
  PCG/                PCG_RoadNetwork
  Input/              IMC_Hideout, IMC_CityMap, IA_Move, IA_Look, IA_Interact,
                      IA_Pan, IA_Zoom, IA_Click, IA_Escape
  UI/                 (empty — populated Block 2+)
  Maps/
    L_Hideout.umap
    L_City.umap
  Materials/          M_BlockoutBase (parameterized color instance)

Done When

• Player walks around blockout hideout in first person at raccoon height
• 7 labeled station volumes placed and interactable (print to screen on interact)
• Raid Board interact switches to city sublevel overhead camera with pan/zoom
• City sublevel has 2 box buildings with hover highlight, NavMesh on roads, hideout exit marker
• Escape from city view returns to hideout camera
• All enums, structs compile — can instantiate an FRaccoonData, read its stats, check a resource counter in a C++ test
• All 7 subsystem stubs instantiate via GetGameInstance()->GetSubsystem<T>()
• All DataAsset C++ headers compile (no content assets yet)

References

Station Operation Model · Vision
